Barry heavy-lift synthetic longline systems offer helicopter operators a lightweight, easy-handling and reliable option for external load/underslung applications.
System Includes

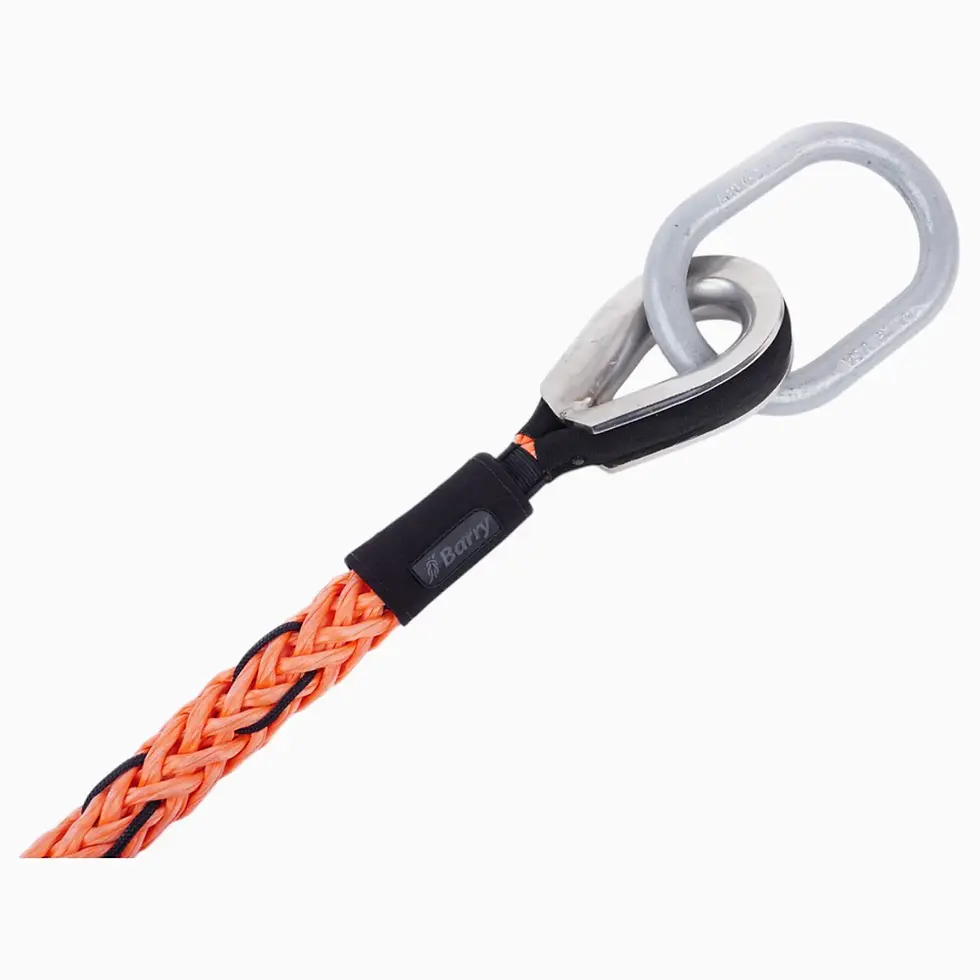

- Synthetic rope longline (Dyneema® fiber)
- Master link at top end
- Protective double zipper jacket for easy inspection of longline & wire
- Electrical cable with connectors*
- Permanent ID tag
- Certificate of compliance (COC)
- User instructions manual
- Transport/storage bag
Optional / Accessories
- Weighted bottom end-cover for increased load-stability and velocity without load
- Jacket with external helix for vibration control
- Non-electric swivel hook
Technical
- 10-year service and shelf life
- Proof-loaded to 1.5 x WLL
- Supported by Airworthiness Analysis to FAA CFR Title 14, Parts 27 & 29
Standard lengths: 25’, 50’, 75’, 100’, 125’, 150’ and 200’
(Other lengths available upon request)
| Product Code | Diameter | Working Load Limit | Weight (for 100’) |
|---|---|---|---|
| DLH-11500 | 7/8’’ | 11,500 lb | 56 lb |
| DLH-14000 | 1’’ | 14,000 lb | 58 lb |
| DLH-21000 | 1-1/4’’ | 21,000 lb | 105 lb |
| DLH-29000 | 1-1/2’’ | 29,000 lb | 120 lb |
Service and Shelf Life
| Max. shelf life | Max. service life | Max. combined life (shelf + service) |
| 10 years | 10 years | 10 years |
*Important: Parts are considered on-condition throughout their shelf & service life and must pass inspections and maintenance recommendations as per the manufacturer's user instructions manual.
Dyneema® is a trademark of DSM. Use of this trademark is prohibited unless strictly authorized.
* Standard electrical cable: 3C/14 SJTW/SJOOW 300V (Other gauges, conductors and multiple wire configurations available upon request)
* Male/Female connectors supplied, to be installed by end-user.
